Minoura SPN-20 Spindle Stand

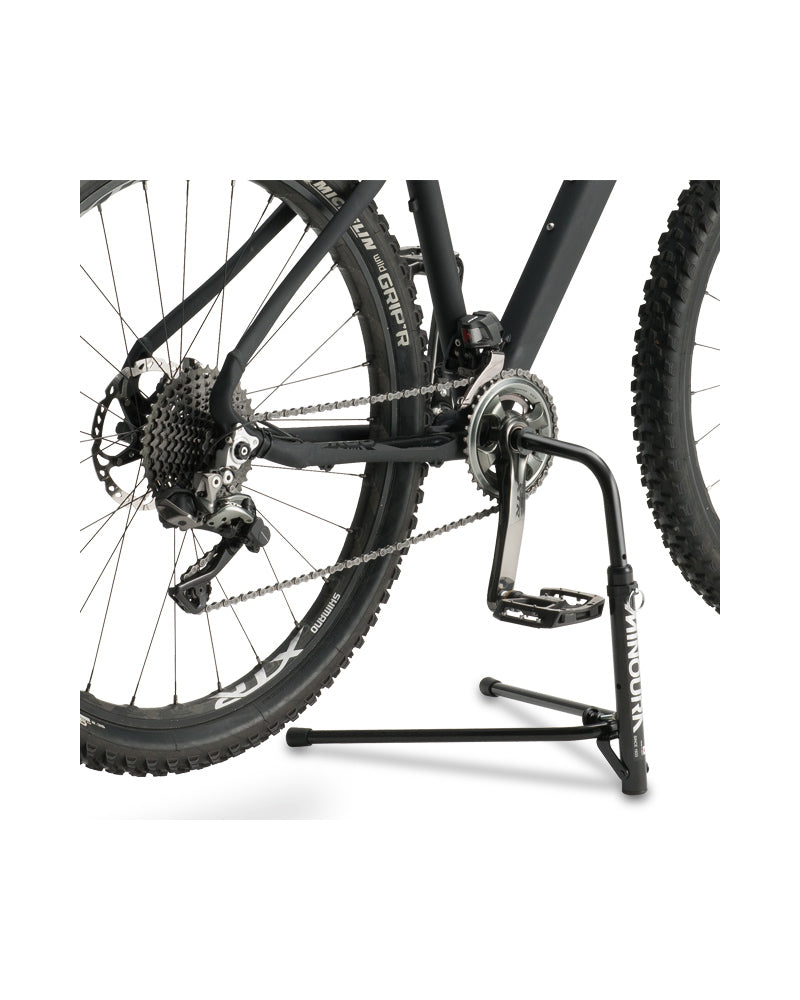

The Minoura SPN-20 Spindle Stand is a simple yet effective solution for bike display and light maintenance tasks. Designed to support your bike by the bottom bracket spindle, this stand gently lifts the rear wheel off the ground, making it ideal for tasks like chain lubrication, derailleur adjustment, and pedal spinning.
Perfect for cyclists who want a minimal, compact, and portable maintenance stand without needing full workshop equipment. The stand is compatible with most bikes that feature a hollow spindle crankset and offers a clean, stable lift without touching the frame or wheels.
- Dimension(mm): 410 x 325 x 400 (from center of spindle to ground)
- Material: Steel
- Colour: Black ED paint
- Weight: 1.3kg
- Max load: 30kg
- Solid, easy mount for Shimano / Sram / FSA

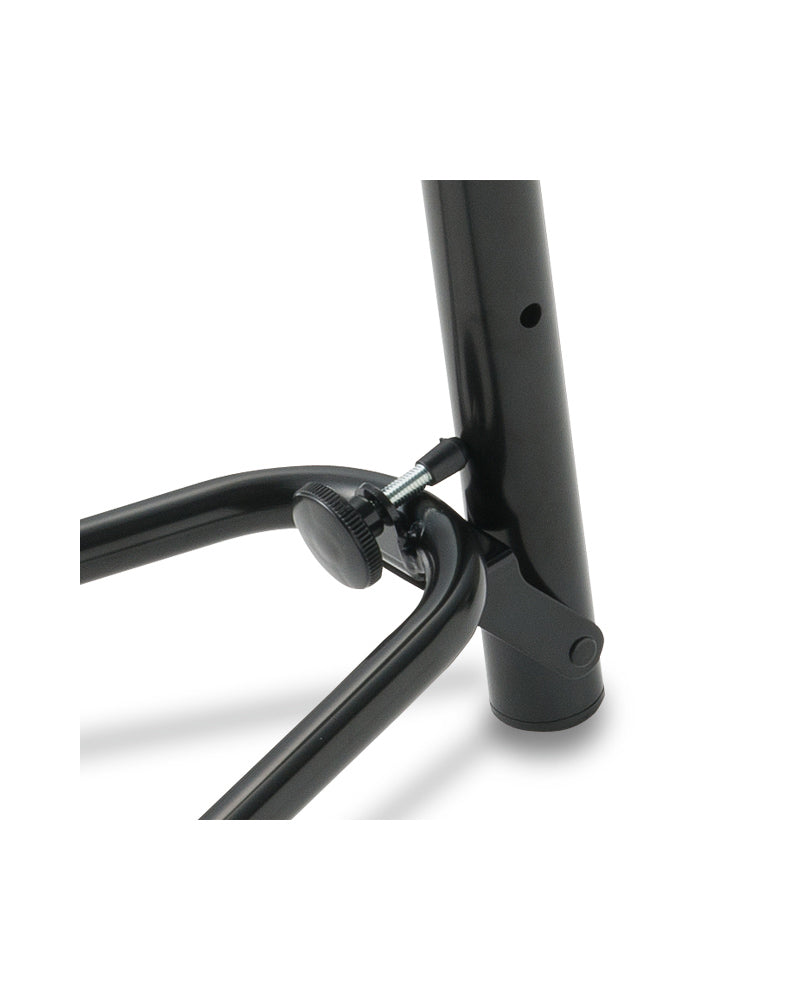

- Adjustable in three height positions (330mm/365mm/400mm) for 26" / 27.5" / 29"
- Foldable for easy storage or transport
- Allows pedal rotation for maintenance
- Spindle adaptor mount for ø21(Shimano / Sram) and ø13(Race Face)
- *Compatible models (Shimano): Xtr-Saint-Slx, Deore, DXR, MX71
- *Compatible models (Sram): Red-XX1-XX01-XX-Rival-X9-X7-Apex-Force
- *Compatible models (Truvative): Descendant DH
- *Compatible models (FSA/ROTOR): All cranks
- *Compatible models (Race Face): Compatible to ø13
*Note: Compatibility for crank hole 21mm diameter or smaller
The Minoura SPN-20 Spindle Stand lifts your bike via the bottom bracket, offering a clean, stable way to display or perform light maintenance with the rear wheel elevated.
