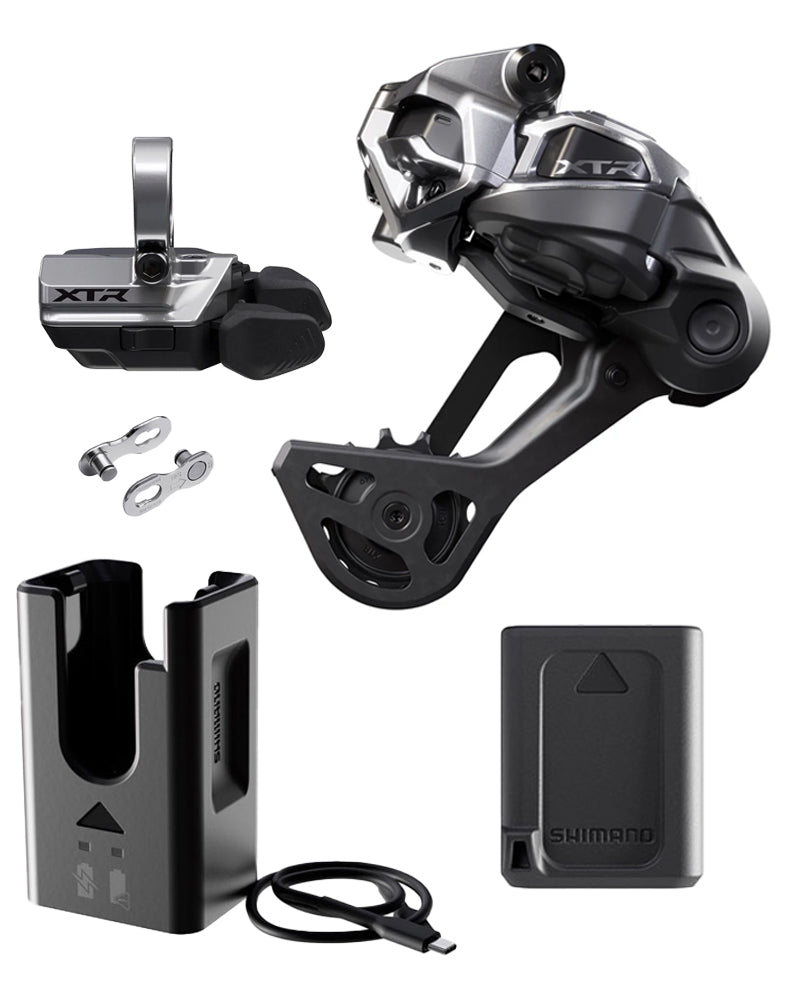

Shimano XTR M9250 12 Speed Di2 Upgrade Kit
The Shimano XTR M9250 12-Speed Di2 Upgrade Kit is Shimano’s most advanced electronic drivetrain system, engineered for elite racers and trail riders who demand lightning-fast shifting, exceptional durability, and full wireless integration. This complete kit includes everything needed to upgrade to Shimano’s cutting-edge XTR Di2 technology:
Shimano XTR SW-M9250-R Di2 shifting switch – Ergonomic, fully adjustable, and feature-rich for precise gear changes.
Shimano XTR RD-M9250 Di2 rear derailleur – Impact-protected, ultra-fast shifting with Shadow ES stability.
Shimano BT-DN320 Di2 rear derailleur battery – Compact, durable, and long-lasting power source for consistent performance.
Shimano EC-DN100 battery charger for Di2 rear derailleur battery - Efficient charging for uninterrupted riding.
Shimano SM-CN910-12 quick link connector – Tool-free, reliable chain connection for 12-speed drivetrains.
Together, these components deliver the smoothest, fastest, and most precise shifting performance Shimano has ever developed.
Shimano XTR SW-M9250-R Di2 shifting switch (Clamp band)
The Shimano XTR SW-M9250-R Di2 Shifting Switch blends familiar ergonomics with next-generation wireless precision. With multiple shift modes, tactile feedback, and a fully programmable third button via the E-Tube app, this shifter provides elite-level control and customization for any race or trail.
- Series: XTR
- Switch type: Adjustable lever position
- Position: Clamp band
- Button numbers (pcs): 3
- Switch 1 (Default function): RD outward
- Switch 1 (Multiple input | 2 step): ✔
- Switch 1 (Multiple input | Hold): ✔
- Switch 1 (Adjustable lever position): Forward/backward, upward/downward
- Switch 2 (Default function): RD inward
- Switch 2 (Multiple input | 2 step): ✔
- Switch 2 (Multiple input | Hold): ✔
- Switch 2 (Adjustable lever position): Forward/backward, upward/downward
- Switch 3 (Default function): Shifting/Adj. mode
- Switch 3 (Multiple input | Hold): ✔
- Battery: CR1632 x 2
- LED (Shimano system status): ✔
Shimano XTR RD-M9250 Di2 12-Speed rear derailleur
The Shimano XTR RD-M9250 Di2 Rear Derailleur is Shimano’s most advanced derailleur to date, designed for ultimate speed, range, and durability. With Automatic Impact Recovery, Shadow ES stability, and a new wedge-shaped body for impact deflection, it delivers flawless wireless shifting under the harshest race and trail conditions.
- Series: XTR
- Rear speeds: 12
- Compatible chain: HG 12-speed
- Direct attachment mount(conventional):✔
- Max. front difference: 0T
- Total capacity: 36T (GS) | 41T (SGS)
- Low sprocket (Max): 45T (GS) | 51T (SGS)
- Low sprocket (Min): 45T (GS) | 51T (SGS)
- Top sprocket (Max): 9T (GS) | 10T (SGS)
- Top sprocket (Min): 9T (GS) | 10T (SGS)
- Fluoric coated link bushings: 8
- Pulley (Guide pulley bearing): Sealed bearing
- Pulley (Tension pulley bearing): Sealed bearing
- Pulley (Teeth): 13
- Pulley (Sunken type pulley screw): ✔
- B-axle (Hollow axle): ✔
- Di2 connectivity wireless (Di2 shifting): ✔
- Di2 connectivity wireless (Bluetooth® LE custom (*1) | Adjust mode information): ✔
- Di2 connectivity wireless (Bluetooth® LE custom (*1) | Di2 battery level): ✔
- Di2 connectivity wireless (Bluetooth® LE custom (*1) | Gear position): ✔
- Di2 connectivity wireless (Bluetooth® LE custom (*1) | Shimano E-bike systems data items (*3)): ✔
- Di2 connectivity wireless (Bluetooth® LE custom (*1) | Compatible with E-Tube ride): ✔
- Di2 connectivity wireless (Bluetooth® LE custom (*1) | Compatible with E-Tube project): ✔
- Di2 connectivity wireless (ANT private (*2) | Adjust mode information): ✔
- Di2 connectivity wireless (ANT private (*2) | Di2 battery level): ✔
- Di2 connectivity wireless (ANT private (*2) | Gear position): ✔
- Di2 connectivity wireless (ANT private (*2) | Shimano E-bike systems data items (*3)): ✔
- LED for system status: ✔
Shimano BT-DN320 Di2 rear derailleur battery
Compact and durable, the Shimano BT-DN320 Di2 internal battery powers your wireless drivetrain with long-lasting reliability. Fitting securely within the rear derailleur, it ensures consistent shifting performance across any terrain.
- Model no: BT-DN320
- Type: On-board battery
- Chemistry: Li-Ion
- Rated voltage (V): 7.6
- Rated capacity (Ah): 0.305
Shimano EC-DN100 battery charger for Di2 rear derailleur battery
The Shimano EC-DN100 Charger keeps your Di2 battery ready for every ride. Compact and easy to use, this USB-compatible charger is the reliable way to power your Shimano wireless drivetrain.
- Model no: EC-DN100
- Type: On-board battery
- Compatible battery: BT-DN320
- Charging cord: Included
Shimano SM-CN910-12 quick link connector
The Shimano SM-CN910-12 Quick Link provides a secure, tool-free connection for Shimano 12-speed chains. Perfect for quick installation and easy maintenance, it delivers reliability and convenience for riders.
- Model no: SM-CN910-12
- E-bike rear derailleur system compatible: On-board battery
- Compatible battery: ✔
- Compatible chain: HG 12-speed
- Pin link plate: Nickel plated
- Chromizing treatment link pin: ✔
Take your performance to the next level with the Shimano XTR M9250 Di2 Upgrade Kit—crafted for racers, perfected for trail riders.
